Description

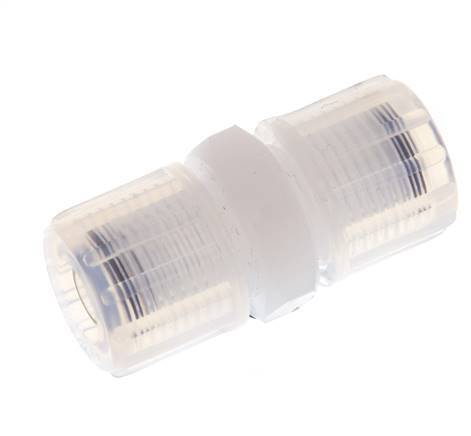

This pfa straight screwed-on screw connection is designed with one female threaded connection and one compression ring connection port. Connection 1 is a 10×8 mm compression ring. Connection 2 has female threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from -40 to 180 °C (-40 to 356 °F).
Pros:
- It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance
- It has FDA approval
Cons:
- Since it has a compression ring connection, it can only be used once
- It cannot be used with PTFE hoses
