Description

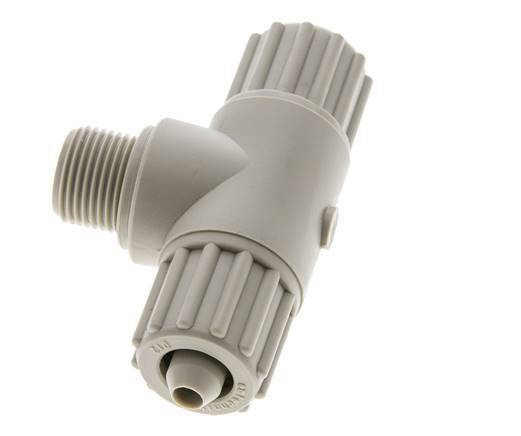

This pp Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 12×6 mm compression ring. Connection 2 is a 12×6 mm compression ring. Connection 3 has male G 3/8 inch threads. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-0.95 to 145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).
Pros:
- Frequent assembly and disassembly possible
- No hose clip or projecting mesh wires of the metal braid
Cons:
- This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel
