Description

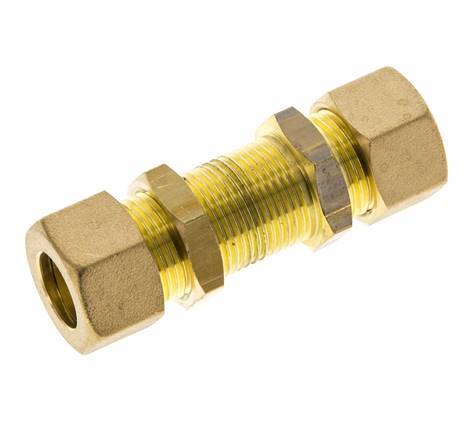

This brass straight screw connection is designed with two compression ring connection points. Connection 1 is a 14 mm compression ring with a M20x1.5 union nut. Connection 2 is a 14 mm compression ring with a M20x1.5 union nut. The maximum pressure is 89 bar (1291 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). The bulkhead thread has an M 20×1.5 thread with a length of 19 mm. It is made in accordance with DIN EN 1254-2.
Pros:
- Adheres to DIN EN 1254-2
- Suitable for neutral and non-corrosive media
Cons:
- The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
