Description

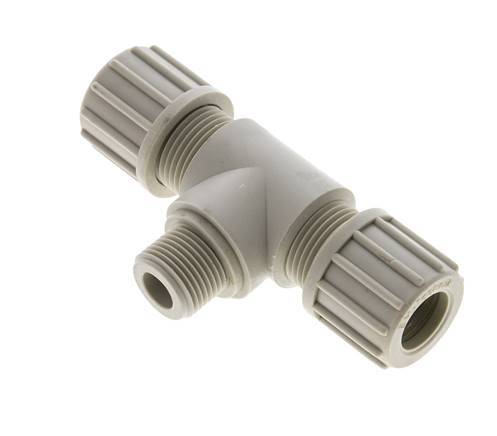

This pvdf Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 14×12 mm compression ring. Connection 2 is a 14×12 mm compression ring. Connection 3 has male G 3/8 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from -40 to 140 °C (-40 to 284 °F).
Pros:
- It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance
- It has FDA approval
Cons:
- Since it has a compression ring connection, it can only be used once
- It cannot be used with PTFE hoses
