Description

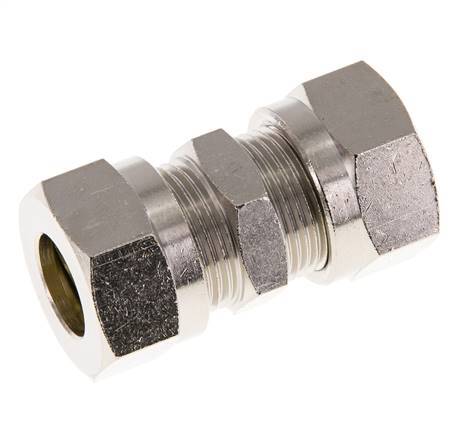

This nickel plated brass straight screw connection is designed with two cutting ring connection points. Connection 1 is a 15 mm cutting ring with a M22x1.5 union nut. Connection 2 is a 15 mm cutting ring with a M22x1.5 union nut. The maximum pressure is 70 bar (1015 psi). The fitting is suitable for temperatures from -60 to 300 °C (-76 to 572 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- Suitable for neutral and non-corrosive media
