Description

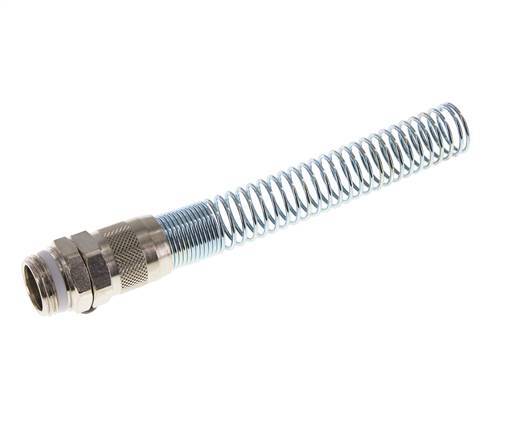

This nickel plated brass straight push-on fitting is designed with one push-on connection and one male threaded connection. Connection 1 is a 15×12 mm push-on connection. Connection 2 has G 1/2 inch male threads. It has a bend protection. The seal material is PTFE. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F).
Pros:
- Easy assembly and disassembly with the push-on connection design
- It can be used for vacuum applications
- It has a bend protection spring for extra protection
- Suitable for neutral and non-corrosive media
