Description

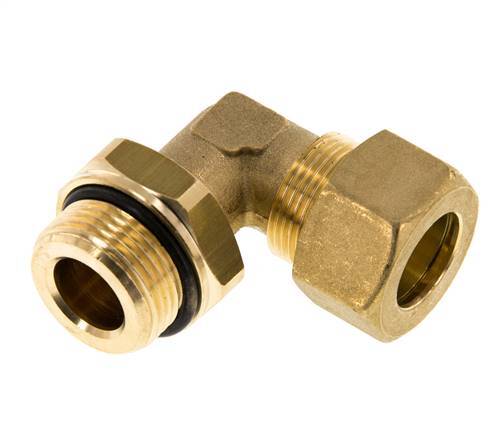

This brass elbow screw in connection is designed with one male threaded connection and one compression ring connection port. It has an adjustable connection. Connection 1 is a 18 mm compression ring with a M24x1.5 union nut. Connection 2 has male G 3/4 inch threads. The seal material is NBR. The maximum pressure is 67 bar (972 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN 1254-2.
Pros:
- Adheres to DIN EN 1254-2
- It has adjustable connection
- Suitable for neutral and non-corrosive media
Cons:
- The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
