Description

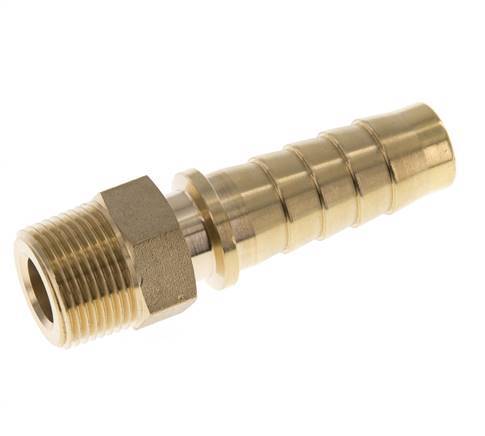

This brass hose screw-in connection is designed with a hose pillar and a male thread. Connection 1 is a hose pillar, designed for a hose with an internal / external diameter of 19×33 mm. Connection 2 has R 3/4 inch male threads. The maximum pressure is 18 bar (261 psi). The fitting is suitable for saturated steam max. +210 °C (410 °F), water up to +120 °C (248 °F). It is made in accordance with the DIN EN 14423.
Pros:
- Adheres to DIN EN 14423
- Suitable for saturated steam
- Suitable for neutral and non-corrosive media
