Description

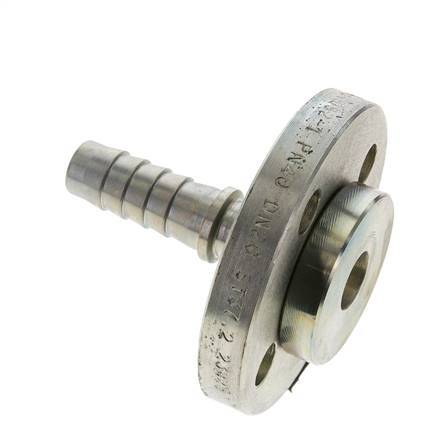

This zink plated steel flange is designed with a hose pillar and a flange connection. Connection 1 is a hose pillar, designed for a hose with an internal / external diameter of 19×33 mm. Connection 2 is a flange connection with size of DN 20 mm. The maximum pressure is 18 bar (261 psi). The fitting is suitable for saturated steam max. +210 °C (410 °F), water up to +120 °C (248 °F). The plate flange dimensions corresponds to PN 10/16/25/40. It is made in accordance with the DIN EN 14423 / DIN 2826.
Pros:
- Adheres to DIN EN 14423 / DIN 2826
- Suitable for saturated steam
- The flange connection is turnable
