Description

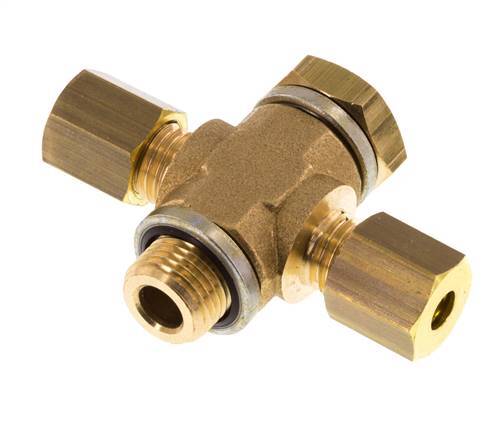

This brass Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 4 mm compression ring with a M8x1 union nut. Connection 2 is a 4 mm compression ring with a M8x1 union nut. Connection 3 has male G 1/8 inch threads. The seal material is Zinc plated steel, with NBR insert. The maximum pressure is 150 bar (2175 psi). The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). It is made in accordance with DIN EN 1254-2.
Pros:
- Adheres to DIN EN 1254-2
- Suitable for neutral and non-corrosive media
Cons:
- The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353)
