Description

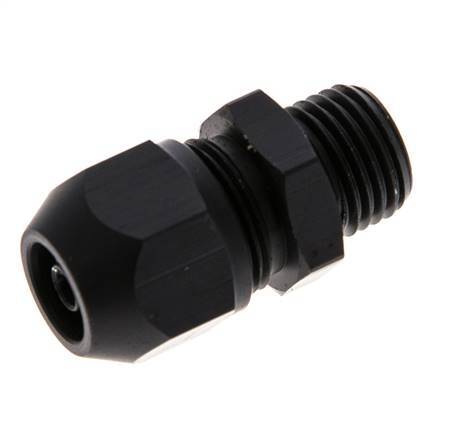

This aluminum straight screw in connection is designed with one male threaded connection and one compression ring connection port. Connection 1 is a 7×4 mm compression ring. Connection 2 has male G 1/4 inch threads. The seal material is PVC and PA. The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -10 to 60 °C (14 to 140 °F).
Pros:
- Frequent assembly and disassembly possible
- No hose clip or projecting mesh wires of the metal braid
Cons:
- This fitting can only be used with hoses made of polypropylene, PVDF, aluminium or stainless steel
