Description

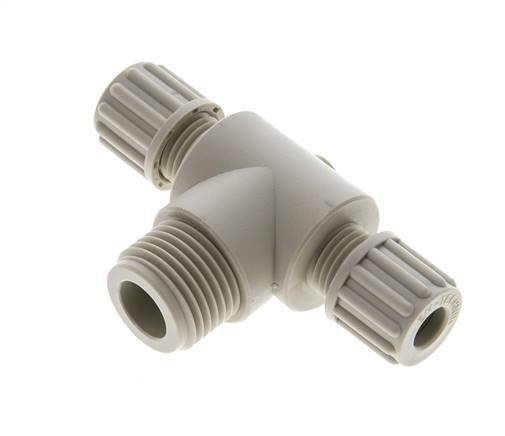

This pp Tee screw in connection is designed with one male threaded connection and two compression ring connection ports in a T-shape. Connection 1 is a 8×6 mm compression ring. Connection 2 is a 8×6 mm compression ring. Connection 3 has male G 1/2 inch threads. The maximum pressure is 10 bar (145 psi). The fitting is suitable for temperatures from 5 to 90 °C (41 to 194 °F).
Pros:
- It can be used for very soft hoses, liquids, for strong movements between hose and connection or necessary chemical resistance
Cons:
- Since it has a compression ring connection, it can only be used once
- It cannot be used with PTFE hoses
