Description
Features and Benefits:
- Eliminates the need for tubing/fittings of conventional pressure switch unloader
- Maximum working pressure of 250 pounds per square inch
- Range of 3-12 standard cubic feet per minute
- Maximum recommended temperature of 450 degrees Fahrenheit

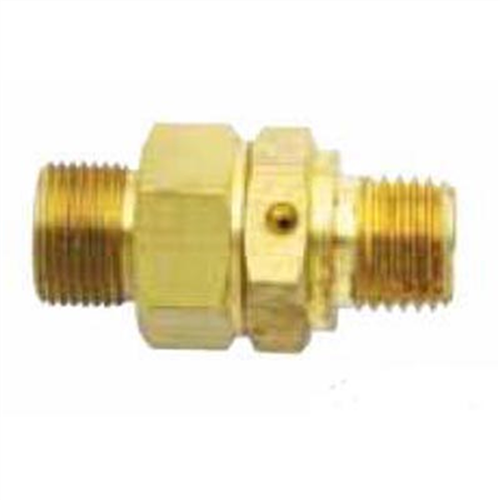

Load genies are a combination of an un-loader and a check valve. Unloads discharge manifold in either vertical or horizontal position of any compressor when compressor cycles and flow stops. Load genie unloads discharge manifold using 3/8″ Male NPT with 1/2″ compression inlet. SCFM range 3 to 13.
Size: L 0.8125 in. x W 0.8125 in. x H 0.8125 in.
